1. New – Fischer XRF GOLDSCOPE SD / GOLDSCOPE SDD Pro 2. Give Away – 3 x LED Torches to GIVE AWAY 3. News – Case for XAN500 / Compact Phased Array ‘MANTIS’ 4. Application – Analysis of the metallic content of plating Solutions

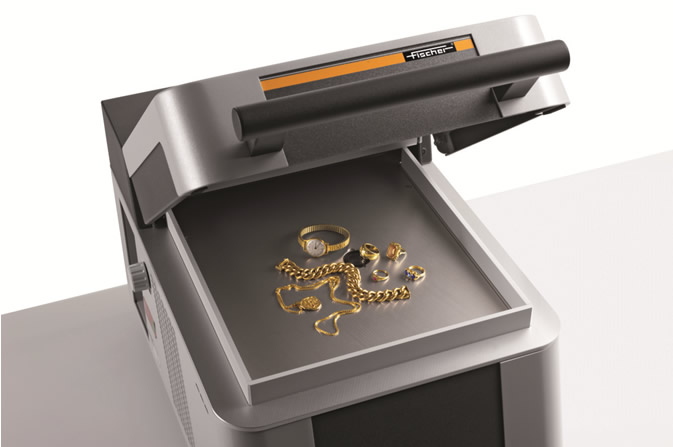

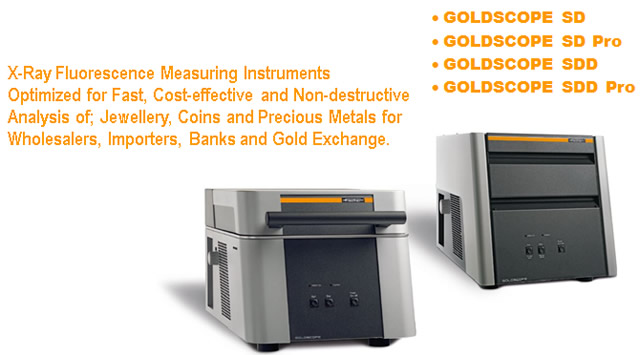

GOLDSCOPE – Features

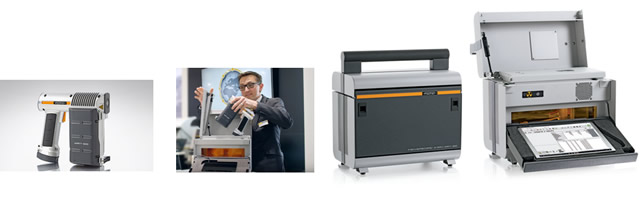

• Compact and sturdy desktop instrument for non-destructive material analysis.
• Hardware and WinFTM Software are matched perfectly for gold and precious metals.
• Easy sample positioning, by the spacious measurement chamber and bottom-up measurement direction.
• Compliant with EN 61010, DIN ISO 3497 & ASTM B 568.
• SD Goldscope has a silicon PIN detector.
• SDD Goldscope uses silicon drift detector technology for higher resolution of elements.
• FISCHER WinFTM® software with predefined measurement tasks in analysing precious metals
• Tablet or PC is part of the instrument.
GOLDSCOPE – Typical fields of application
• Non-destructive analysis of jewellery, coins and precious metals.
• Conformation for Buying and selling of gold.
• Analysis of precious metals or dental alloys.
• Conformation in Jewellery manufacture.
• Certification: solutions for refineries, assay offices and hallmarking.
• Thickness measurement of gold and rhodium coatings on precious metals and alloys.
KARL DEUTSCH Phased Array Testing: Compact and Portable ‘MANTIS’
The MANTIS by Karl Deutsch.
The user guidance provided by GEKKO was adopted completely and allows the inspector to concentrate on the test task without having to deal with complicated operating techniques. In the “ADEPT” basic configuration, even TFM (Total Focusing Method) is available for 16 parallel channels.
For more complex scanning tasks, the MANTIS can be upgraded with the “EXPERT” module to three encoder axes and 20 kHz pulse repetition frequency. Moreover, with the “MASTER” extension it is even possible to realize high resolution TFM with 64 channels by multiplexing – slower than with GEKKO but with the same resolution.
The supplied “CAPTURE” and optional “ENLIGHT” softwares are to generate data records and more detailed
analyse preparation.
L x W x H: 320 mm x 220 mm x 100 mm. Weight 4.4kg INC. battery
Analysis of the metallic content of plating Solutions

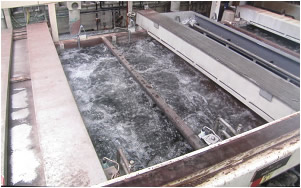

In order to apply coatings at a well-defined plating rate and with a well-defined composition, electroplating companies must monitor and control the formulation of their plating baths very closely. For example, the metallic coatings (like AuCuCd, AuCuIn, RhRu or others) especially beloved in the jewellery industry must be applied absolutely homogeneously over the entire surface to ensure an even colour finish.
The quality of metallic coatings depends heavily on the formulation of the plating bath, which consequently needs to be monitored. Compared with other methods, XRF (x-ray fluorescence) analysis of such solutions is straightforward: sample preparation is quick, and the only consumables required are small pieces of plastic foil, as opposed to other analytical methods where gases (Ar) or purified water are used.

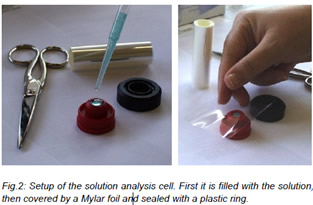

All the FISCHER XRF instruments can be easily outfitted for analysing plating solutions by providing the optional solution analysis cell (see Figure 2). First, the specialised cell is filled with the solution to be analysed,
then it is covered with a thin but robust Mylar foil and sealed with a plastic ring – all part of the solution analysis kit. Different cells are available which vary only in the material of the cell’s base from which they are made. Choosing the correct material can considerably improve the measurement performance. Matrix effects (Cl, SO4, CN,…) in the solution can be corrected via the absorption of fluorescence radiation of the cell’s base material (e.g. Mo or Ni).
Measurement results are available within minutes which provides short reaction times regarding changing the bath. In addition the cells are resistant against chemicals and can be re-used.
HELMUT FISCHER’S precision, fast and user-friendly Fischerscope XRF instruments are perfect for analysing the metallic content of plating solutions. Equipped with the solution analysis cell they provide great time savings compared to other analytical methods.
