In This Issue:



1. Cover Story  – The ECONOSCOPE – Unmatched Image Quality

2. Special         – 30% OFF – HSW Econoscope

3. Reminder     – www.kks.com.au   our Website constantly updated

4. News            – News: Foerster FEREX 4.034. –  Helmut Fischer XAN500

5. Applications   SIGMASCOPE® SMP10 – Hairline Cracks in Bearings





probe july17 1

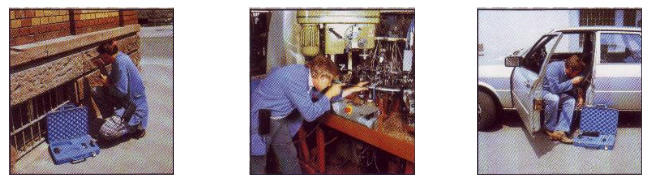

NDT Borescope

Visual non-destructive material examination



probe july17 1 a

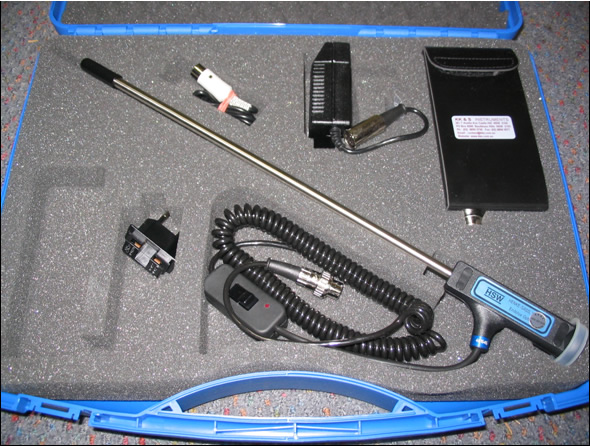

The HSW – ECONOSCOPE has been designed with;

  • Market leading glass prism technology,
  • Clearest image you will find,
  • 90º viewing angle,
  • Focus fixed from 7mm to infinity,
  • Working Length 315mm,
  • 9mm or 5mm Diameter Models,
  • Bright halogen illumination,
  • For inspections which don’t need cold light.







ECONOSCOPE  –  July ~ September Special

30% OFF

probe july17 1 b

Like more Information – 02 8850 3755



probe july17 2

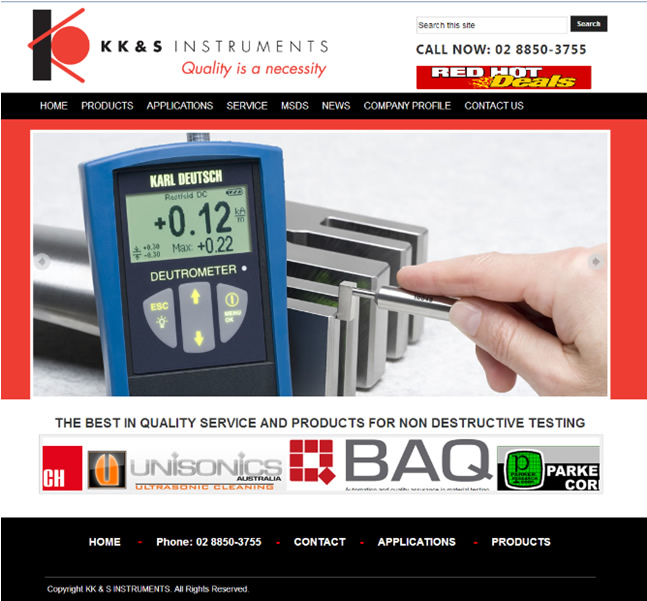

Don’t Forget; www.kks.com.au

& See What’s New



probe july17 2 a





probe july17 3

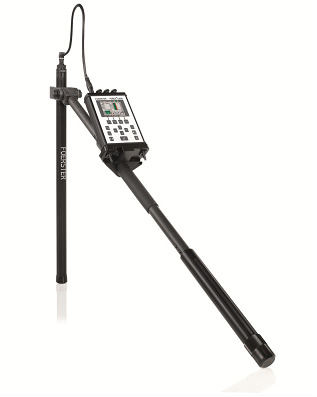

Institute Dr Foerster launch the new FEREX®

4.034 FERROUS LOCATOR WITH;

4-CHANNEL DATA LOGGER

probe july17 3 aNew FEREX 4.034 functions:probe july17 3b

  • Ø A high end 4- channel data logger including new improved fluxgate vertical gradient magnetometers
  • Ø A universal field controller with interfaces to link GPS and alternative sensors
  • Ø A survey project management tool to prepare complex survey projects, stake out survey grids and display survey results.

Like more information

02 8850 3755





probe july17 3cFISCHERSCOPE® X-RAY XAN® 500

Mobile X-RAY Fluorescence Measuring Instrument for

Coating Thickness Measurement & Non-Destructive

Material Analysis.

Typical fields of application:

• Measurements on large coated parts, like Wheels, Machine

components and housings

• Mobile measurements in electroplating shops

• Mobile measurements of precious metals

• Determination of the metal content in electroplating bath

Solutions. (Solution analysis)



With the FISCHERSCOPE X-RAY XAN 500 measurements on large specimens and at difficult-to-reach locations
can be performed easily and quickly. The Fischerscope is optimized for a safe placement onto the specimen.
The coating and material composition can be measured wit consistently.



probe july17 4

Detection of hairline cracks in bearings for medical devices

All components of medical devices are subject to very stringent safety and quality requirements. For example
is the slide bearing used in precision Xray equipment: The flawless functioning of these bearings depends on,
among other things, the quality of their surfaces. All defects in those surfaces, even the finest hairline
cracks, must be ruled out – this a major challenge during  inspection.

The Bearings, such as those used for the moving X-ray tube are actually gliding on a thin film of liquid. If
the surfaces have any damage at all, perfectly free movement cannot be assured for the service lifetime.

Technically, such cracks near the surface are difficult to detect, as optical inspection methods very quickly
reach their limits with fine hairline cracks. However, measuring the electrical conductivity of the material
provides a simple and quick way to detect even tiny fissures.

This method is very sensitive to structural inconsistencies.

probe july17 4a

FISCHER’s mobile handheld instrument SIGMASCOPE®

SMP10, used together with the probe ES40, non-destructively measures the electrical conductivity of nonferrous metals
rapidly and precisely using the phase-sensitive eddy current method, which produces exactly the right conditions
required for crack detection.

To check a surface for cracks, the probe ES40 is passed over the surface of the sample in free-running mode. Eddy
currents are formed in the material, which are in turn recorded by the probe and converted to a signal in the
instrument. In the case of the bearings we examined as a test, the conductivity measured was in the range of
18.3 MS/m, with very low variation. Any hairline cracks in the material will hinder the spread of the eddy
currents – even the very finest, optically invisible faults. In practice, when the tested bearings showed a value
of e.g. 14 MS/m, that would clearly indicate that a crack had been found by means of electrical conductivity.

The probe ES40 has a range of measurement frequencies (60-480 kHz), making it suitable for different material
thicknesses. Using a lower measurement frequency results in the eddy current field penetrating deeper into
the sample material.

The measurements on the bearings described above were carried out using the probe’s highest frequency of 480 kHz,
thus looking specifically for damage in the material near the surface. For use on tiny parts, the optional
probe ES24, which has a smaller measuring head than the ES40, is recommended.

probe july17 4b

Fig.2: SIGMASCOPE® SMP10 to measure the electrical conductivity
by means of the phase-sensitive eddy current method

For the detection of fine hairline cracks in medical X-ray equipment, measuring the electrical conductivity
with the SIGMASCOPE® SMP10 from FISCHER is an excellent solution. And between the two probes
ES40 and ES24, a wide variety of part geometries can be accommodated, completing the ideal system for
this purpose.

Have any questions or like further details?;

contact us now !

Ph 02 88503755 or Email
