In This Issue:

1. Cover Story  – Surface Roughness & Coating Thickness in One Instrument

2. Special         – Probes – Special 12% OFF

3. News            – News from Fischer

4. Application    – Application – Surface Profile

Fischer FPR1 Surface Profile Probe

Surface profile probe measures peak to valley distances according to ASTM 4417, Method B. The Hard metal tip can be replaced in the field if necessary. Used with the Helmut Fischer FMP Series instruments for the assessment of blasted surfaces before applying coatings.

Like A Price – 02 8850 3755

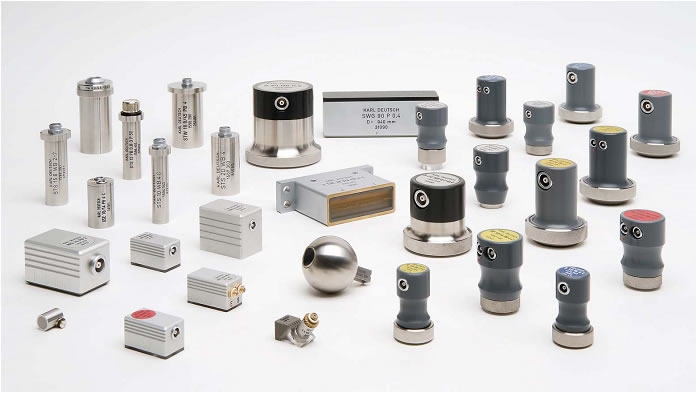

Probes , Probes & more Probes

12% OFF

Like more information – 02 8850 3755

New Fischerscope – GOLDSCOPE SD

X-Ray Fluorescence Measuring Instruments

Optimized for Fast, Cost-effective and Non-destructive Analysis of Jewellery, Coins and Precious Metals

Outstanding accuracy and long-term stability are characteristics of all Fischerscope X-RAY systems. The necessity of recalibration is considerably reduced, saving time and effort.

The GOLDSCOPE SD instruments are equipped with a modern silicon PIN detector, which achieves high accuracy and good detection sensitivity. For even higher resolution, the GOLDSCOPE SDD instruments with their Silicon Drift Detectors (SDD) are available.

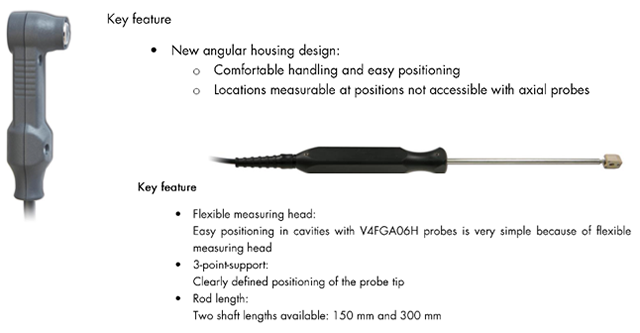

Helmut Fischer launches new FMP Probes

Like more information – 02 8850 3755

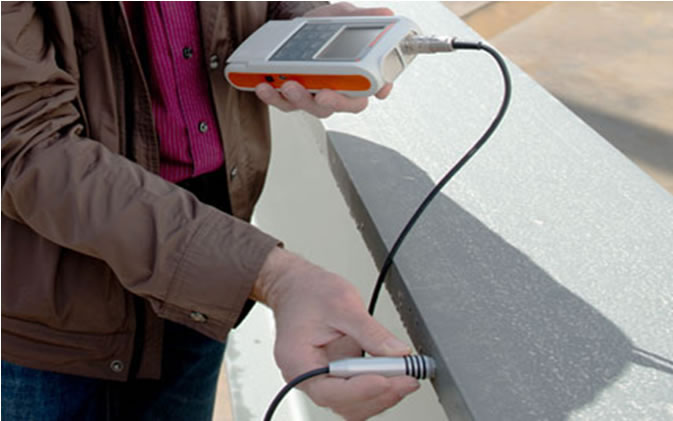

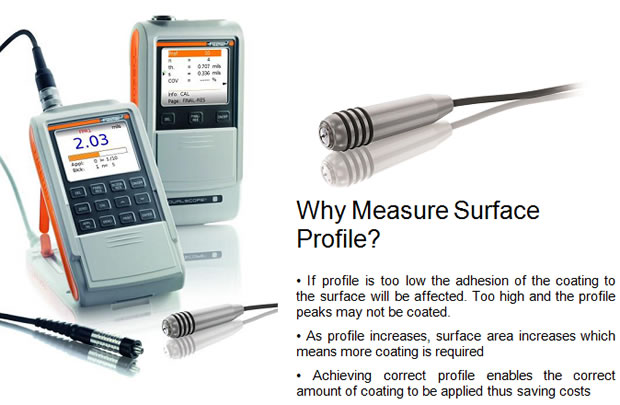

Measure Surface Profile with DUALSCOPE FMP40

• If profile is too low the adhesion of the coating to the surface will be affected. Too high and the

   profile peaks may not be coated.

• As profile increases, surface area increases which means more coating is required

• Achieving correct profile enables the correct amount of coating to be applied thus saving costs

Description

• Surface profile probe measures peak to valley distances according to ASTM 4417, Method B. Hard  metal tip can be replaced in the field. Used with the FMP Series instruments for the assessment of blasted surfaces before applying coatings. Includes calibration standard set 605-308.

• Range:        –  0-500 μm (0-19.5 mils)

• Accuracy: –   up to 100 μm (4 mils): ≤ 3 μm (0.12 mils)

                  –    100-500 μm (4-19.5 mils): ≤ 3% of the meas. value

• Conforms with: ASTM D4417, Method B,

                         SSPC PA17, AS 3894.5-C,

                         U.S. NAVY NSI 009-32,

                         SANS 5772 and others.

Features

• Separate probe with 60° angle

• Probe tip field replaceable

• Highly repeatable and precise

• Large color display

• Progress bar for required number of measurements

• Automatic maximum results

Like more information – 02 8850 3755

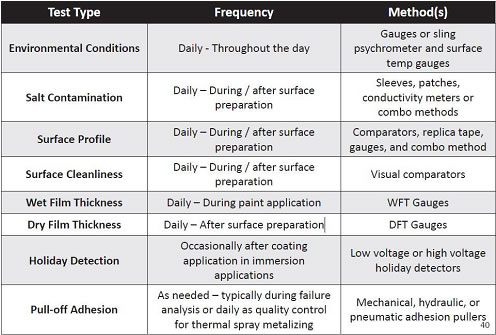

Tests Coating Inspectors Perform on Coating Projects

Conclusion

• Measure Coating Thickness & Surface Profile on the one Helmut Fischer instrument.
• Results can be uploaded to Helmut Fischer DataCenter for further evaluation.
• The Helmut Fischer Digital probe is quicker and more accurate.
• No recurring or consumable costs.
• Conforms with: ASTM D4417, Method B, SSPC PA17, AS 3894.5-C, U.S. NAVY NSI 009-32, SANS 5772 and others.

Have any questions or like further details?;

contact us now !

Ph 02 88503755 or Email
