In This Issue:

1. Cover Story – Foerster FEREX® 4.032 DLG / Karto

2. Article – Why Purchase Quality

3. News – New! The METEX 4.250 Metal Detector

– New! Ergonomic Magnetic Yoke from Parker

4. Application – Verify Heat Treatment Condition

Untitled-5

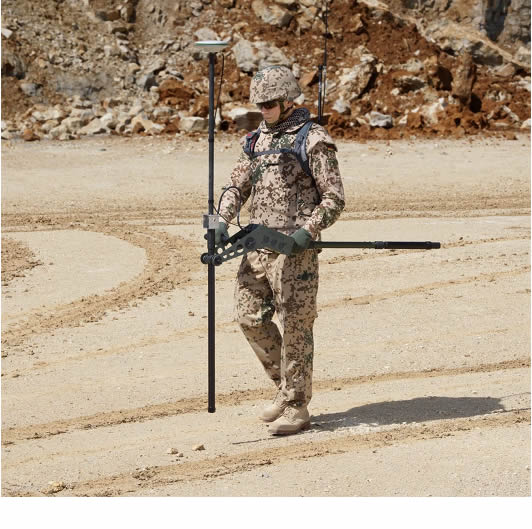

Foerster FEREX® 4.032 DLG / Karto

Ferrous Locator with 4 Channel Data Logger



FEREX®. The renowned vertical gradient fluxgate magnetometer that measures the deformation of the earth’s magnetic field evoked by ferromagnetic objects. The FEREX® Magnetometers are suitable for the detection of ferromagnetic metals like iron, steel or nickel. Normally the detection depth of FEREX® magnetometers is larger compared to active EMI detectors but it varies and depends on the object’s mass and its magnetic properties. The FEREX 4.032 DLG® can be used either in the direct indicating FEREX® mode or in the data logging mode. Four data logging channels allow the expansion of the FEREX 4.032 DLG® to a multi probe system for large area detection. Furthermore it can be upgraded to the FEREX 4.032 DLG Karto® model which comes with a GPS-interface for geo-referencing and navigation.

Untitled-6Characteristics

  • Detection of ferrous material/UXO e.g. bombs, shells, projectiles, sub-ammunition
  • ENVIRONMENTAL CLEAN UP & GEOMAGNETIC SURVEY
  • Magnetometer using tension band technology
  • Probe calibration for lifetime
  • In-built filters for search under power lines
  • Special mode for fences, pipelines and railway tracks
  • Special mode for filtering small objects
  • Precise handling, light weight
  • High detection sensitivity

Untitled-7

  • Modular design

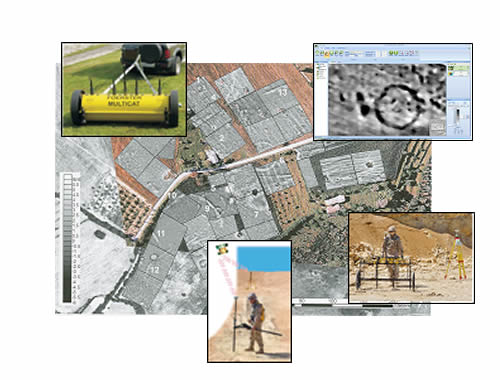

  • Data logging of up to 4 channels
  • Extendable to 3 or 4 multi probe system with optional wheel set or Multicat
  • GPS-interface (Karto model)
  • Software DATA2LINE – evaluation of recorded data





Untitled-8

German Made – what does it really mean?

Made in Germany’

  • Stands for quality products!
  • Stands for top-notch engineering!
  • Stands for world-class instruments!

The reputation of high quality German instruments is very valuable for the German economy as a whole. German companies use the ‘Made in Germany’ label to communicate the quality of their products to customers everywhere.

This highly prised benchmark statement is held in great regard worldwide.

In this disposable world, does longevity still mean something? we believe it does. Many a client has purchased and inferior Asian made product only to find it falls short of their expectations.

Value as well as capability still remains part of your most important purchasing decision.

Next time you are considering an instrument purchase, remember how our forefathers felt;

“The bitterness of poor quality remains long after the sweetness of low price is forgotten”

– Benjamin Franklin

KK&S Instruments continue to exclusively represent these Quality German Brands;

* HELMUT FISCHER – Coating Thickness & Analysis Instrumentation

* KARL DEUTSCH – Ultrasonic Instruments & Online Equipment

* INSTITUTE Dr FOERSTER – Magnetic Instrumentation & Test Equip

* HENKE SASS WOLF – Borescopes / VideoScope’s



Untitled-9

NEW! Metal Detector for greater depth

PRODUCT DESCRIPTION Untitled-10
The METEX 4.250 is an active metal detector for targets at depths up to 3.3 m. Its large search coil allows the detection of all conductive metal types regardless if you search in soil or shallow water. Due to its larger power output the main purpose of the METEX 4.250 is to locate objects that cannot be detected by conventional mine detectors due to their greater depth.

Characteristics
• Electro-magnetic pulse induction technology (EMI)
• High sensitivity for all kind of metals in soil or shallow water
• Automatic tracking function for soil compensation
• Simultaneous operation of multiple systems in close vicinity possible
• Detection depth up to 3.3 m depending on size, geometry, orientation of the target and soil/environmental conditions;
– 25 mm HE: up to 0.7 m
– BLU26: up to 1.0 m
– 155 mm HE: up to 2.5 m
– Mk 82: up to 3.3 m

Coil Untitled-11
• Size approx. 1 x 1 m
• 2.5 m connection cable to control unit
• Watertight rugged housing
• 2 carrying straps for handling by 2 operators
• Optional wheel set for handling by 1 operator

Control unit
• Analogue meter indication of target detection, tracking range and battery status
• Adjustable audio indication of target detection, switch off when using headphones
• Manual offset compensation
• Adjustable parameters like: transmitting power, gain, evaluation time and pulse frequency
• Carrying harness Point

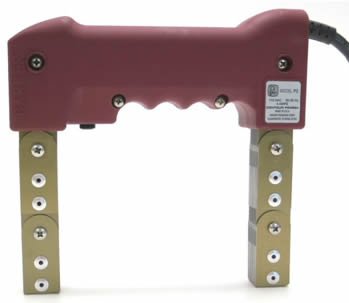

NEW! Ergonomic Yoke from Parker, the inventor of the articulated yoke.

Untitled-12P-2 Series Contour Probe
Still comes with a Free Yoke Light and a 12 month
User Damage or Manufactured fault warranty

The ergonomic, light-weight design is extremely comfortable and reduces stress on the operator especially when conducting overhead testing. This new style allows for an excellent grip in a variety of testing positions.

New Ergonomic Grip
Lightweight (under 2.3kg)
Durable Moulded Construction
Powerful AC Magnetic Field
One-Year Guarantee
Totally Repairable
Exceeds ASTM 10 lb Weight-Lift Requirement



Untitled-13

Untitled-14 Untitled-15
Application:

Inspection of steel ball stud components, to verify heat treatment condition. Parts are tested inside the hex head area (threaded side).



Material identification:

M12 – 75 x 49.00 Ball Stud.

Good parts are properly heat treated to HRc 32-38.



Rejects are parts that are partially heat-treated and annealed or parts that are un-heat treated.



Test instrument and probe:

DEFECTOMETER 2.837 portable crack

detector with standard Ferrous pencil probe



2.835.01-3000 and probe cable 1460188/2.837.01.

Test setup and procedure:

1. Connect probe and turn the instrument on.

2. Hold the probe in air and press “Liftoff.

3. Place the probe on the good master part

and press “Zero”.

4. Place the probe on the good master part

(properly heat treated) and verify a 0%

signal on the instrument display.

5. Place the probe on the reject master part

(improperly heat treated) and adjust the

gain until the signal amplitude exceeds the

80% threshold on the instrument display.

6. Recheck the good master part to verify

a 0% signal amplitude. Press “Zero” if

required.

7. Begin testing parts with unknown condition.

And there you have it! Non-destructive verification of reject component.

Have any questions or like further details?; contact us now !

Ph 02 88503755 or Email
